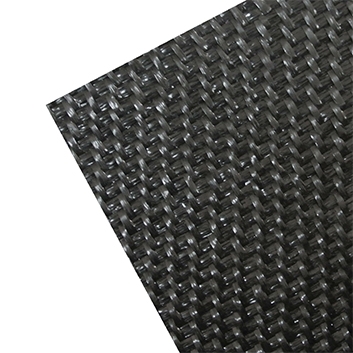

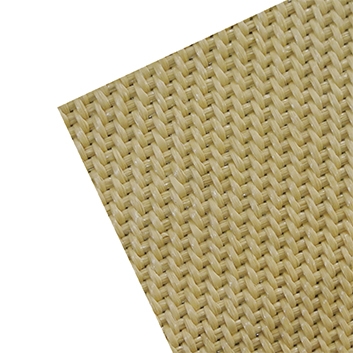

TRST PPWG-Series geotextile tube fabric is simple, economical as well as environmentally-friendly. The unique fabric structure can hold grit and tiny particle, at the same time, swiftly drain water from the tubes.
Widely used in sand beach protection, breakwater, dam, river regulation and sewage disposal, etc.
| Property | Test Method | Units | PPWG500 | PPWG1000 |
| Wide Width Tensile Strength | ||||
| MD @ Ultimate | ASTM D4595 | lbs/in(KN/m) | 450(78.8) | 1142(200) |
| CD @ Ultimate | ASTM D4595 | lbs/in(KN/m) | 625(109.4) | 1142(200) |
| Wide Width Tensile Elongation | ||||
| MD | ASTM D4595 | % | 20(max) | 20(max) |
| CD | ASTM D4595 | % | 20(max) | 20(max) |
| Factor Seam Strength | ASTM D4884 | lbs/in(KN/m) | 400(70) | 913(160) |
| CBR Puncture | ASTM D6241 | lbs(N) | 2000(8900) | 4000(17800) |
| Apparent Opening Size (AOS) | ASTM D4751 | mm(U.S.Sieve) | 0.43(40) | 0.6(30) |
| Water Flow Rate | ASTM D4491 | l/min/m2(gpm/ft2) | 813(20) | 815(20) |
|
UV Resistance % Retained at 500 hrs |
ASTM D4355 | % | 90 | 90 |
| Proysics | ||||
| Area | ASTM D5261 | g/m2(oz/yd2 ) | 585(17.3) | 1119(33) |
